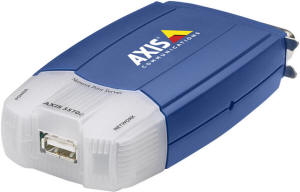

Axis 5570e - TCP/IP Print Servers
for AFP / IPDS / SCS Printing from
IBM iSeries AS/400 and zSeries S/390 Host Systems


Axis AFP / IPDS / SCS  Print Servers

PLEASE NOTE:  The Axis 5570e IPDS Print Server  has been discontinuedThe direct replacement product is the I-O Corporation 5765ePlease click here to be taken to the 5765e IPDS Print Server page.

Overview

The AXIS 5570e (P/N 0193-044), a host-to-LAN print server, enables organizations with IBM Mainframe (zSeries) or IBM AS/400 (iSeries) to print to any printer or digital copier, including those with USB ports.

The AXIS 5570e, with built-in IBM protocol converters, is equipped with one USB and one parallel port, which enable printing to two printers simultaneously.

The AXIS 5570e is the first multi-session USB print server for the IBM environment.

The AXIS 5570e, a host-to-LAN print server, enables organizations with IBM Mainframe (zSeries) or IBM AS/400 (iSeries) to print to any printer* or digital copier, including those with USB ports.

The AXIS 5570e, with built-in IBM protocol converters, is equipped with one USB and one parallel port, which enable printing to two printers simultaneously. The AXIS 5570e is the first multi-session USB print server for the IBM environment.

The AXIS 5570e provides support for all popular protocols and operating systems such as Windows, NetWare, Macintosh, UNIX and Linux, in addition to IBM host system printing over TCP/IP and SNA networks. The same printer can therefore be used for print jobs coming from the IBM host as well as Windows and other operating systems.

The AXIS 5570e features an improved installation wizard for IBM printing, increased remote management security using TLS/SSL (HTTPS) and enhanced print management in AXIS ThinWizard 3.00.

The AXIS 5570e provides a flexible, reliable and cost- effective network printing solution for IBM host environments. There is no need for application changes, host-based conversion software or intermediate servers. The AXIS 5570e helps free the host system's resources for more critical tasks, thereby improving the overall throughput of the IBM system.

Features

  • Future-proof pocket print server supporting both parallel and USB printers

  • Easy installation: installation wizard for IBM printing, AXIS AddPrinter for Windows, support for Bonjour in MacOS environments

  • Enhanced configuration and control: support for HTTPS and SNMPv3, AXIS ThinWizard management software

  • Multilingual support: User's Guide and internal Web pages available in English, German, Spanish, French, Italian and and Japanese

  • Multiprotocol support: Use the same printer for print jobs from the IBM host as for print jobs from Windows, NetWare, MacOS, Linux and Unix.

The AXIS 5570e is the successor to the successful AXIS 5470e, which is installed in tens of thousands of units worldwide. This model supports all the AXIS 5470e features and many more.

Purchase On Line





Item Number

Description

Purchase

AXIS-5570e

Axis 5570e AFP / IPDS / SCS TCP/IP Print Server
Support for one Parallel Port Attached or one USB Port Attached Printer ( Axis P/N 0193-004 )

Call Us At
800-597-2525
for Availabiliy





Information Request Form





Axis 5570e IPDS Print Server Information Request Form
Have a salesperson contact me
Send product literature
Send company information
Immediate
30 Days
60 Days
90 Days

* Required
