The
Rabbit is 200% faster, 30% smaller, consumes less than
half the power (only 4.4 watts) and runs 30% faster than other "mini"
or "turtle shell" thin clients.
High speed AMD Geode™ GX 533
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
- Windows CE.NET based, fast, compact and LCD mountable |
 |
|
|
- Windows CE.NET based, fast, compact and LCD mountable |
|
|
|
- Linux based, fast, compact and LCD mountable |
|
|
|
- Windows XPe, fast, compact and LCD mountable |
|
Advantages
|
|
||||||||||||||||||

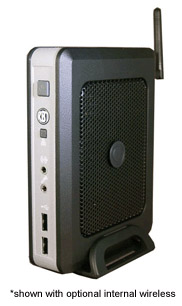

| Front and back views of the Rabbit in it's vertical stand showing 4 USB Ports, VGA connection and 10/100 Ethernet port |
Click here for more
information on the BOSaNOVA Rabbit Thin Client Terminal
The Rabbit (RBT-366) supports three modes of operation:TBT Mode - Text Based Terminal mode, setup with startup wizard (no mouse required), terminal green screen with auto start and auto-reconnect, 122 key keyboard support, Function key macro support and split screen. WBT Mode - Windows Based Terminal mode, where the terminal behaves like a CE.NET device with full screen applications, optional GUI 5250/3270, Terminal Server access, Citrix or Tarantella which auto start and auto-reconnect Desktop Mode - Windows 2000 type user interface provides access to all applications in a windowing environment including GUI 5250 / 3270 with up to eight emulation sessions. |
The Rabbit Mounted on an LCD Monitor with the optional VESA Mounting Bracket (BOS9003) |
Full-Featured 122-key KeyboardThe BOSâNOVA Rabbit includes support for a full-featured 122-key keyboard*, enabling efficient work with host applications, whether they be Windows Terminal Server, or 5250/3270 terminal sessions. Because the BOSâNOVA 122-key keyboard is driverless, it functions seamlessly with any PC, as well as with a thin client. Therefore, for customers with a mixed PC and thin client environment, the BOSâNOVA 122-key keyboard is the ideal keyboard investment. |
The 122-key keyboard
available with the |
Click here for more information on the BOSaNOVA Rabbit Ethernet Terminal
Benefits:
 |
The Rabbit outperforms similar products by |
|
Industry standard OS (Linux 2.6 Kernel) |
|
Small form factor for space-saving, desktop |
|
Use with Windows Servers and embedded |
|
Advanced emulation with 8 5250 sessions. Split Screen, Rule
Cursor, macro support, |
|
Available option for USB wireless networking |
|
Controlled power down prevents leaving |
|
3-year advance exchange warranty |
Technical Specifications
System:
|
|
|
RAM: 128MB ; DOM: 64MB |
|
10/100 BaseT Ethernet |
|
External USB 1.1 Ports (4) |
|
SNMP based BOSManager provides management tools for updates, monitoring, and control |
Thin Client/Server Computing:
|
RDP (5.2 equivalent) and ICA (Version 9) |
|
Terminal Emulation suite, includes IBM 5250 & 3270, VT100, and Wyse |
Dimensions/Weight:
|
Unit H x W x D: 1.4" (35 mm) x 5.5" (140 mm) x 5.1" (130 mm) |
|
Base Weight: .88 lbs., excluding external AC/DC adaptor |
Regulatory:
|
FCC-B and CE |
Environmental:
|
Operating Temperature: 0° ~ 40°C |
|
Humidity: 0% ~ 90% |
|
DC12V, 1.2A |
Standard Package and Accessories:
|
Thin Client and Stand |
|
AC/DC Adapter |
|
USB to PS2 adapter |
|
3-year warranty |
|
Documentation |
*Optional
Click here for more information on the BOSaNOVA Rabbit Ethernet Terminal
Ordering Information
| Item No. | Description |
| BOS7366 |
Rabbit Thin Client Terminal with 5250, 3270, RDP, ICA |
| BOS8122B | iSeries and zSeries style 122-Key Keyboard |
| BOS8104B | 104 key PC Keyboard |
| BOS9001 | Printer Adapter - USB to Centronics Parallel |
| BOS9002 | USB to PS2 Adapter |
| BOS9003 | VESA Mounting Bracket |
Download the BOSaNOVA
Rabbit Datasheet
|
