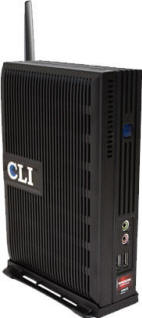

   AG6661 Wireless Thin Client Terminal
Dual Video Ready - 1.4 GHz Processor WES7, WES, CE 6.0 and Linux

A Wireless Thin Client Terminal for
All Desktop Environments as Well As
for Your IBM Power Systems
over TCP/IP

Overview

The AG6661 Series of Wireless Thin Clients is a powerful and affordable wireless thin client that delivers the performance and expandability you need. With its dual-video capability built in, the AG6661 enables task workers to work across dual monitors without a splitter cable.

The AG6661's robust platform is ready to handle any task. With a dual core AMD G-Series T48E processor running at 1.4 GHz and a Radeon HD 6250 Graphics Processor it has the performance features needed to handle the most complex VDI environment.  Delivering custom or unique peripheral support with standard parallel port, serial port, two PS/2, 4 USB and dual DVI ports with an included VGA adapter and optional internal wireless. The AG6601W has the tools and features required for deployment into the most demanding of virtual environments.

The Integrated wireless 802.11b/g/n WI-FI™ feature provides mobility and wireless performance that is the best in the thin client market.   It is available with the following models:

Wireless Model Number

Operating System

AG6661H

Windows CE6

AG6661L

Linux

AG6661W

WES7 (Windows Embedded 7 Standard)

The AG6661 is a universal hardware platform with universal image support for Windows 7 Embedded (WES7), Windows Embedded Standard (WES), Windows CE 6, or Linux out of the box. Citrix, Microsoft, VMWare, Quest and CLI TermPro Terminal Emulation clients are all standard, as is Internet Explorer. In addition, CLI’s Device Manager software is included with each device, making simple and powerful management a reality. The AG6661 combines strong power, performance and flexibility while maintaining efficient power consumption.

If you are looking for an Wireless Ethernet "Dumb Terminal" with a Parallel Port, the AG6661 can be configured to act as a "Dumb Ethernet Terminal" just like the ET2000.  They can be configured to automatically boot up to a 5250 or 3270 sign-on screen.

You can see this in the CLI YouTube Video "5250 Autostart MT2301" at the link directly below:

https://www.youtube.com/watch?feature=player_detailpage&v=x8u3ZL4DG5s

This video applies to all CLI CE.NET based Thin Client Terminals with CE4, CE5 or CE6 Operating Systems.

Featured Highlights

  • Integrated DVI-D and DVI-I video ports (VGA Adapter Included) – no video splitter cable needed

  • Full Array of  Legacy Ports - 1 Parallel, 2 PS/2, 1 Serial, 4 USB

  • Integrated wireless 802.11b/g/n WI-FI™

  • Zero footprint / VESA compatible or vertical mounting options

  • Flexibility to embed customer selected Windows Apps

  • Industry-standard Microsoft Windows Embedded Standard 7 (WES7), CE.NET 6, or Embedded Linux

  • Enhanced video including high resolution wide-screen monitor support

  • CLI SNMP Administrator Management software is included with every unit. Rapidly deploy, configure, provision and maintain all models of CLI thin clients, wired or wireless.

  • Optional 122-key Keyboard to provide "no re-training" required migration to Ethernet connectivity from legacy "green screen" Twinax and Coax Terminals.


    Click on the image above for a larger picture of the 122-Key Keyboard

Click here for more information on the CLI AG6661 Thin ClientTerminal

Productivity

User productivity is enhanced by eliminating any learning curve and costs associated with PC products. Centralized management of individual units better utilizes support and help desk assets.

Cost Savings

Eliminates 5x94 remote controllers by using an inexpensive network router. You can also eliminate your SNA WAN and use TCP/IP thereby reducing communication costs. Plus, no per seat license cost.

As with all of CLI's Thin client Terminals and Modular Twinax Display Stations, you select from a wide array of keyboard and monitor styles for individual application or user requirements.  Whether you need a compact terminal with a 9" monitor and compact keyboard, or a large screen LCD model, CLI can provide the proper terminal for your particular requirement.

Click here for more information on the CLI AG6661 Thin ClientTerminal

For Complete Specifications Download the CLI AG6601/AG6661 Datasheet


AG6601 / AG6661 Hardware Specifications

Model

AG6601W

AG6601H

AG6601L

Operating System

WES7

CE6

Linux

Processor

AMD G-Series T48E  - 1.4 GHz

Memory (min/max)

2gb / 4gb

1gb / 2gb 1gb / 4gb

Flash (Storage)

(min/max)

4gb / 16gb

1gb / 8gb 1gb / 4gb

Network

Auto sense 10/100/1000 BaseT twisted pair Ethernet, RJ 45 connector, Wake On LAN
Optional Integrated 802.11 b/g Wireless (AG6661W, AG6661X, AG666, AG6661L)

Wireless
802.11b/g/n Wi-Fi™

Model AG6661W

Model AG6661H

Model AG6661L

I/O Ports

1 Parallel Port, 1 Serial Port (DB9 RS 232C), 4 USB 2.0 Ports, 2 PS/2 Ports (one for Keyboard, one for Mouse), 1 Mic-in jack, 1 Audio Out Jack, 1 RJ45 Ethernet

Video

VX855-based Chrome9 HCM 3D graphics core
High Definition video processor with VMR capability

Audio

Full 16 bit stereo FM synthesis, stereo line out, 8 bit mini microphone line in

Physical Specifications

Dimensions: 1.4 in / 3.5cm (W) x 5.6 in / 14.2cm (D) x 8 in / 20.5cm (H)
Weight: 1.4 lb
VESA 100 compliant mounting holes (monitor mounting kit included)
Built in Kensington Security slot (cable not included)
Optional monitor arm or wall mount adapter
Metal shielded ASB plastic enclosure

Environment

Operating temperature: 0°C to 40°C (32°F to 104°F), Storage temperature: 40°C to 60°C ( 41°F to 140°F)

Relative humidity: 20% to 80% non condensing

Power requirements: 100 240 VAC, 50/60 Hz

Convection cooling, no fan

Regulatory Compliance

• FCC Class B • ROHS • CE Mark • UL, TÜV




For Complete Specifications Download the CLI AG6601 Datasheet



AG6601 / AG6661 Software Specifications

Model

AG6601W

AG6601H

AG6601L

Operating System

WES7

CE6

Linux

Protocols

• Microsoft RD .x

• ICA

• X Client

• VNC (Remote Shadowing)

• PXE,

• Provision Networks

• VMware View

• Web Browser

• Microsoft RD .x

• ICA

• X Client

• VNC (Remote Shadowing)

• PXE,

• Provision Networks

• VMware View

• Web Browser

• RDP 5 compatible

• ICA

• X Client

• VNC (Remote Shadowing)

• PXE,

• Provision Networks

• VMware View

• Web Browser

Terminal Emulations

• IBM TN5250e, TN3270e, 3151

• DEC 100/220/320/420

• ANSI BBS, SCO Console

• Wyse WY50/60, XDMCP optional SSH/SSL available

Web Browser

• Internet Explorer 7
including Flash and Shockwave playback,
PDF file viewer, MSJVM, Windows Media Player, full plugin and Active X support

Windows CE Internet Explorer 7 Web
Browser , including DHTML, P3P, pop-up
window blocker, and locked-down kiosk
mode

• Firefox 2, including pop popup blocker,
increased privacy and security, Flash
playback, Adobe PDF viewer, Real Kiosk, Sun JRE/JVM

Email Client

• Via local browser or Outlook Express

• Via local browser

• Via local browser

Other Features

• Thin Print available via download

• Supports optional Castles Technology EZ100 smart card reader via USB or serial

• Special builds available via download (i.e. Kiosk, .Net, IE7 and others)

• VNC

• Elo and Microtouch touch screen support

• Thin Print

• Integrated 802.11 b/g wireless (AG6661W and AG6661L only)

• XDMC

• VNC

Enhanced printing
capability

• Windows X printer support – all features
supported

• User installable printer drivers

• LPD/LPR

• AS400 / iSeries / 5250, Mainframe/3270

• Compatibility with many barcode printers

• Universal printer support via local LPD
client and host LPR

• SerialD w/ network to serial port redirection

• AS400/iSeries/5250, Mainframe/3270

• Compatibility with many barcode printers

• Universal printer support via local LPD client and host LPR

• Network (TCP/IP) print server

Security

• Multiple levels of security including user lock-out and multiple built-in user Shell environments

Remote  Configuration /
Management

• DHCP , SNMP , FTP, HTTP

• CLI SNMP Administrator software,
including configuration and image updates,
shadowing, asset management, automatic
patch support

• DHCP , SNMP , FTP

• CLI SNMP Administrator software,
including configuration and image
updates, shadowing, asset management,
registry edit, Eboot for flash disaster
recovery

• DHCP , SNMP , FTP

• CLI SNMP Administrator software, configuration and image updates,
shadowing, asset management

Server Operating System Compatibility / Support

• Microsoft Windows Server 2008, 2003, 2000, Windows NT 4.0, Terminal Server Edition; Terminal Services

• Citrix® Application Delivery Infrastructure including XenApp and XenDesktop, Access Suite™, MetaFrame®, WinFrame®

• Virtual Desktop Infrastructure (VDI) support: vmware VDM*, Provision VAS*, Ericom WebConnect* and others via browser and JVM (* all clients not supported on all platforms)

• UNIX, Linux, IBM OS/400, i5/OS, OS/390, z/OS

• Microsoft Windows Server 2008, 2003, 2000, Windows NT 4.0, Terminal Server Edition; Terminal Services

• Citrix® Application Delivery Infrastructure including XenApp and XenDesktop, Access Suite™, MetaFrame®, WinFrame®

• Virtual Desktop Infrastructure (VDI) support: vmware VDM*, Provision VAS*, Ericom WebConnect* and others via browser and JVM (* all clients not supported on all platforms)

• UNIX, Linux, IBM OS/400, i5/OS, OS/390, z/OS

Languages

• English (US), Spanish (MX), Italian, French, Canadian French, Chinese, Austrian / German, Scandinavian, Spanish, Japanese / Kana, Korean

Network File Transfer Protocols

• TCP / and UDP , all XP supported protocols

• PXE
