Printer Interfaces - Twinax and Coax
SCS & IPDS Interfaces

PR165ESCS Printer Interfaces - Twinax & Coax


PLEASE NOTE:
 The Praim printer interfaces listed below are no longer manufactured.  If we do not have a specific product available we have listed the appropriate replacement product with each of the specific Praim products and the links to information on them.  Please call us at 1-800-597-2525 or 1-908-688-8100 with any questions.
Please CLICK HERE for other Printer Connectivity options.

Overview

printerint.gif (6671 bytes)Praim's Printer Interfaces present leading edge technology in a new generation of Twinax and Coax interfaces for IBM Midrange and Mainframe systems as well as Printer Servers for local Token Ring or Ethernet networks. Precision design, combined with extreme compact dimensions and new innovative functionality, provide efficiency and value for a wide range of desktop and departmental printers - either matrix or laser. Praim's Printer Interfaces are versatile components that allow custom printing solutions for complex and mixed environments.

Below is information on the various printer interfaces and their major characteristics.  These interfaces provide a great way to use lower cost PC matrix and laser printers as fully featured AS/400 Twinax or 3270 type printers.

PR165 - Twinax SCS Printer Interface PR165E

PLEASE NOTE:  This is a discontinued product and no longer manufactured.  The direct replacement product is the Axis AX-3 Twinax InterfacePlease click here to be taken to the AX-3 Twinax Interface page.

The PR165 is a universal external Twinax Printer Interface with
firmware resident bar codes and large characters.

Emulates IBM 5256, 5224, 5225, 4214, 4234/2, 5219/D1 and 3812/1.

Support for continuous forms, 3 drawers,
envelope, manual feeders, simplex/duplex, auto page
orientation, and COR (Computer Output Reduction)

PR165 is available in four different models:

  • PR165E-SHA : for printers up to 600 LPM/20PPM with integrated PC Share.
  • PR165E-PAR: for printers up to 600 LPM/20PPM with a direct parallel connection to your PC printer.
  • PR165E-SER: for printers up to 600 LPM/20PPM with a direct serial connection to your PC printer.
  • PR165S-SHA : high speed interface for printers up to 2000 LPM/50PPM with integrated PC Share.

Click Here For More Information on the PR165 Twinax Interface



PR195 - Coax SCS-DSC/DSE Printer Interface PR195E

PLEASE NOTE:  This is a discontinued product and is no longer manufactured.  The Axis AX-7 Cobra Coax-to-Parallel Printer Interface is the replacement productPlease click here to be taken to the
Axis AX-7 Cobra Interface page.

  • Universal Coax Printer Interface with firmware
    resident bar codes and large characters.
  • Emulates IBM 3287, 3268, 4214 and 3262.
  • Support for continuous forms, paper drawers,
    envelope, auto page orientation, and
    COR (Computer Output Reduction).
  • Programmable system string substitution.
  • PR195 is available in three different models :
    • PR195E-SHA: integrated PC share.
    • PR195E-PAR : direct parallel connection to your PC printer.
    • PR195E-SER: direct serial connection to your PC printer.

    Click Here For More Information on External Coax Printer Interfaces

PR086

PLEASE NOTE:  This is a discontinued product and no longer manufactured.  The direct replacement product is the Axis AX-3 Twinax InterfacePlease click here to be taken to the AX-3 Twinax Interface page.

  • Internal Twinax printer interface for laser printers with HP MIO compatible expansion slot.
  • Easy installation and quick front panel configuration.
  • Emulates : IBM 5256, 5224, 5225, 4214, 4234/2, 5219/D1 and 3812/1.
  • Support for 3 drawers, envelope, manual feeders, simplex/duplex, auto page orientation, and COR (Computer Output Reduction).

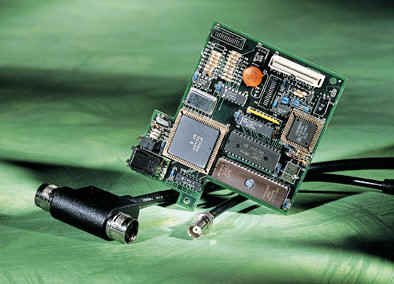

PR387-TC

PR387TC

This is a discontinued product and is no longer manufactured.  The Axis AX-7 Cobra Coax-to-Parallel Printer Interface is the replacement productPlease click here to be taken to the
Axis AX-7 Cobra Interface page.

  • Internal Twinax SCS and Coax SCS-DSC/DSE printer
    Interface for Lexmark 4039 and Optra/Optra-N printers
    with IOP interface.
  • Twinax emulation for IBM 5256, 5224, 5225, 4214,
    4234/2, 5219/D1 and 3812/1.
  • Coax emulation for IBM 3287, 3268, 4214 and 3262.
  • Support for 3 drawers, envelope, manual feeders, simplex/duplex, auto page orientation, and COR (Computer Output Reduction).
  • Programmable system string substitution.





IPDS Printer Interfaces

Praim offers both laser and matrix IPDS solutions for the Twinax environment. All connect an IBM AS/400, S/3X or 5294, 5394, 5494 remote control units or compatibles to a PC printer.



PR102 - Twinax matrix IPDS Interface

This is a discontinued product and is no longer manufactured.

The CBL Y-Cable - IPDS Twinax for Matrix Printers is the replacement product
for providing Twinax IPDS to Parallel Port Matrix  Printers.

Please click here to be taken to the CBL Y-Box IPDS Twinax Interface for Parallel Matrix Printers.

  • Supports most important IPDS functions for PPDS (matrix), PPDS (laser), Epson FX, Epson DFX, Epson LQ, and Bull Compuprint printers.
  • Connects to most matrix, PC compatible printers or PPDS lasers.
  • Emulates an IBM 4224/101 and 4234/12 printers.
  • PC-Host share allows sharing the printer with other input devices.
  • Two interface possibilities are provided : Centronics parallel and serial RS-232.



PR088Plus - Twinax Laser IPDS Interface

This is a discontinued product PR88Plusand is no longer manufactured.

The I-O Corp. 4465 - IPDS Twinax for Laser Printers is the replacement product
for providing Twinax IPDS to Parallel Port Matrix  Printers.

Please click here to be taken to the I-O Corp. 4465 IPDS Twinax Interface for Parallel Laser Printers.

  • IPDS support for PCL5 laser printers.
  • Twinax attachment.
  • Supports all IPDS towers.
  • Connects to any laser printer with a standard Centronics
    parallel port using Hewlett Packard PCL 5 emulation and
    4MB of memory.
  • Supports IBM AFP printers 4028-AS1, 3912-AS1, and
    3812-2.
  • 32 resident fonts (4028 emulation), 34 resident fonts (3912 emulation), and 67 resident fonts (3812 emulation).
  • Standard 4MB memory and up to 16 MB upgrades.
  • Up to five paper source trays capabilities with different page formats.
  • Simplex/duplex, manual feed, and envelope feed capabilities.
  • Manual and Envelope tray capabilities.
  • Support 240 or 300 PEL enhanced printing.
  • Host and Terminal configuration supported.
  • PC Share.
  • High speed Bi-tronics parallel printer interface.

Click Here For More Information on the PR088 External IPDS Twinax Interface for Laser Printers








|
