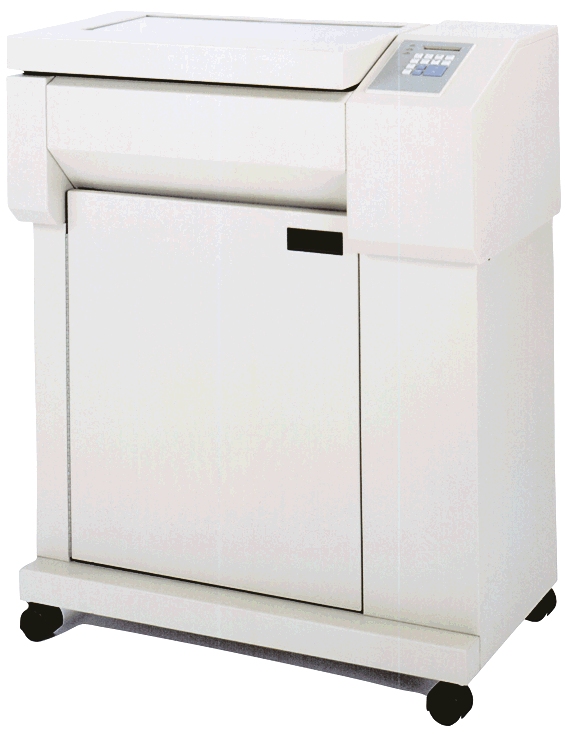

T6065 Matrix Line Printer - 650 lpm

PLEASE NOTE: This is a discontinued product.
The T6065 Matrix Line Printer has been
replaced with the TallyGenicom Line of Matrix Line Printers
Click here to be take to the TallyGenicom Matrix Line Printer page.

Excellent Price
Brings true line printer performance to a wider user base

650 lines per minute
Exceptional reliability. Unlimited duty cycle. 118,000 pages per month workload (Click on picture for full specifications)

Exceptional print quality for text, graphics & bar codes
Incorporates a proprietary injection-molded impact element - creates a uniform, solid dot image - resulting in superior output

Page segmentation architecture
Increases graphics throughput by eliminating bi-directional paper motion

Compact design
Ideal for environments where space is at a premium

3 graphics language emulations
Comes standard with Printronix® Graphics Language (PGL), QMS Code V and Tally Industrial Graphics (IG) -- ensures compatibility with almost any barcode application

Click Here for more information on TallyGenicom Matrix Line Printers

Printer Specifications

Item Feature / Description
Printer type: T6065
Printer technology: Line impact, Dot matrix, Low mass, High inertia patented shuttle mechanism
Monthly workload: 118,000 pages per month
Print speed:
(Lines per minute)
650 lines per minute
  Draft DP Courier Gothic OCR-A** OCR-B**
Upper case: 650 490 260 260 390 160
Lower case: 560 390 195 195 290 115
Character Representation:
(Emulation dependent)

Character Pitch
5, 6, 6.67, 7.5, 8.3, 8.6, 9, 10, 12, 13.3, 15, 16.7, 17.1 & 20 cpi
Line Pitch 1.5, 2, 3, 4, 5, 6, 7, 8, 9, 10 lpi
Graphics Resolution Up to 240 x 288 dpi
Graphics Speed 73 inches per minute (max)
Fonts: Draft, Data Processing, Gothic, Courier, OCR-A** , OCR-B**
Paper Handling: Straight paper path; Four tractor system; Quick Access feature - easy access to forms & labels; Paper out & paper motion detection; Forms position retained in non-volatile memory
Print Media:  Up to 6-part forms
Forms thickness max: .025"
Weight: 15-100 lb stock
Paper Sizes:   Width: 2.5" - 17.25"
Forms length: 1 - 255 lines
Paper Advance:   Slew Speed: 16 inches per second (max.)
Interfacing: Serial RS232 (up to 38.4K Baud) and IEEE 1284-compliant Centronics parallel (both ports hot, and active port selected automatically)
OPTION:
FourPlex I/O - Twinax, Coax, Serial & Parallel, IPDS for FourPlex
LanPlex I/O - Ethernet (10BASE-T and 10BASE2), Serial & Parallel
Extended Parallel - Dataproducts Standard, Dataproducts Long Lines, Serial & Centronics-compatible parallel Interfaces
Emulations: MT600; Printronix P600 & P6000; HP 2564C; DEC LG01; Epson FX100; Genicom ANSI & IBM proprinter III XL
Environmental
Acoustic level: (ISO7779) Enclosed pedestal: 52 dB(A)
Weight: 142 lbs.
Dimensions: (HxWxD) 40.6" x 31.5" x 33.4"
Power Requirements: 90-130/180-264 V, 57-63/47-53 Hz (auto-ranging)
Operating environment: +10°C to +40°C (temperature)
10% to 90% non condensing (relative humidity)
MTBF: 4,000 hours
Consumables: Easy-load, clean-hands cartridges
25, 50 & 150 million characters
  ** The suitability of OCR-A, OCR-B and barcode printout will ultimately depend on the quality of the reader being used. Therefore we recommend that you try samples of OCR and barcode printout prior to purchase.
