MSCS - Multiple System Console Solution
Multiple i5 or iSeries AS400 System Consoles over TCP/IP

Full System Console Control for
Multiple i5s, iSeries AS/400s

or a Combination of AS/400s and LPARs Over an IP Connection - LAN, WAN or Virtual Private Network (VPN)

Overview

With the TwiNet SNA Gateway you can eliminate the problems of administering the System Console function in a multiple AS/400 environment.  The Multiple System Console Solution (MSCS) configuration will make System Console administration of multiple AS/400s as simple as opening a Window on a LAN attached PC.

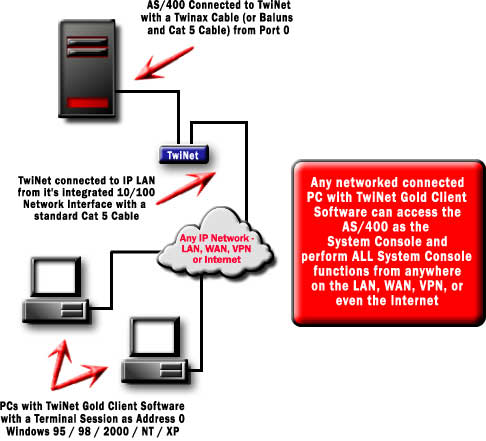

The System Console is typically a "dumb" Twinax Display Station attached to Port 0 / Address 0 of your AS/400 or LPAR.  The System Console is the only terminal that can:

Click on image above for more screenshots.

  • Perform certain System Maintenance and Configuration Procedures (Restricted State)

  • Execute certain type of System Backups (SAVSYS)

  • Respond to certain types of "System Console Only" messages

In the multiple system environment, this requires one terminal per AS/400.  It also requires that an operator be on site to respond to the message, or perform the particular procedure that can only be executed from the System Console.   When the operator is not on site, it usually requires a phone call or a page to a standby operations person who would need to either travel to the office or diagnose the problem over the phone.

TwiNet MSCS will allow these AS/400 or LPAR "System Console Functions" to be handled from anywhere on your LAN, WAN or VPN.   This also includes dial-in to a network attached Remote Access Server (RAS) such as a Shiva LanRover or a BOSaNOVA LanLynk.  This eliminates the necessity of the AS/400 operator to be at the normal location for the System Console - the computer room.

Featured Highlights

  • Manage up to 32 separate AS/400s and/or LPARS from a single TCP/IP PC anywhere on your LAN / WAN / VPN

  • Supports up to seven Twinax Display or Printer sessions (Addresses 0 through 6) on your LAN PCs with the included TwiNet Gold Client Software for each TwiNet Gateway installed

  • Built-in Web Server for easy installation, configuration and monitoring

  • Manage all TwiNet's on your local LAN with the included Network Manager administrative software

Click here for More Information on the TwiNet Multiple System Console Solution


Multiple System Console Solution (MSCS) Diagram

Diagram:  Multipe TwiNet SNA Gateways connecting to multiple iSereis and LPARs to provide full System Console control over a TCP/IP connection from anywhere on the corporate LAN, WAN or VPN.

Click here for More Information on the TwiNet Multiple System Console Solution

Applications for MSCS with TwiNet

  • Control Multiple AS/400s  or LPARs from a single "System Console"

  • Control an AS/36 and AS/400 from the same System Console - Allows upgrading from one system to a new system to be more convenient.  You can also configure additional sessions from each system, up to seven (7) from each TwiNet SNA Gateway.

  • Allow a local network PC to be System Console for an AS/400 at a remote location - Improves system operation capabilities at other locations without the need for a system operator.

  • Allow System Consoles to be anywhere on your LAN/WAN/VPN

Some Features of MSCS with TwiNet

  • Flexible Twinax connection means increased productivity. The TwiNet solution uses a Twinax connection to the host IBM midrange system which means that it can support the IBM AS/400, System/36, Advanced Series/36 and Twinax Remote Controllers. Since TwiNet provides a single point of contact to the midrange host, there is less configuration and operating overhead, providing better overall host performance.

  • Simple, intuitive installation and configuration. On the PC side, a single protocol can be used for both LAN and host PCs, and since TwiNet is a native Twinax gateway, it does not require the overhead and configuration complexities of an APPC router.  And the TwiNet Gold Client software installs quickly and easily, using industry-standard LAN interfaces.

TwiNet SNA Gateway

TwiNet Installation example The picture on the left shows a standard TwiNet installation. The IBM Host can be any S/3X, AS/400 or Remote Control Unit with a Twinax attachment installed. TwiNet can be installed either close to the Host or close to the Clients, using the existing Twinax or UTP cabling very good for long distance connection (up to 5000 feet).



TwiNet support any Windows'95/98/2000 or NT Client. More technical information is available at the following page: TwiNet Data Sheet.

Technical Specifications

Specification

Description

Operating System

PC Side:

Windows 7, Vista, 98, 95, 2000, NT, ME

Host Side side:

AS/400 - Any Model with Twinax Support

Advanced Series/36:  All

System/36:  All

Connectors



1 RJ 45 10BaseT, 100BaseT (auto-sensing)
Twinax Y-Cable with Cable-thru capability for connection to Twinax Host Port

LEDs

Power, Link, 10/100, Check, Alert, Packet and Collision.

Main Power

100-240V AC 50-60Hz

Dimensions

Height

1.85 in. /

 47 mm

Width

8.66 in. /

 220 mm

Depth

5.7 in. /

 144 mm

Weight

1.65 Lb. /  0.75 Kg.

Temperature and
Relative Humidity

50F to 104F / 10C to 40C
8% to 85%

Certifications

CE EN 55022 EN 50082-1 FCC Class A

Warranty

One Year

Click here for More Information on the TwiNet Multiple System Console Solution



Purchase On Line

Item Number

PRODUCT

OPERATING SYSTEMS

PURCHASE

CM-TWINET

TwiNet SNA Gateway
One required for each AS/400 or AS/36 Host Connection

Windows 7 (64-bit and 32-bit)
Vista (64-bit and 32-bit)
Windows XP (64-bit and 32-bit)
Windows 98,
95, 2000, NT, ME
PLEASE NOTE: Local Network
connections only for all versions

Call us at
800-597-2525
for availability

Download the TwiNet Data Sheet



Information Request Form


Have a salesperson contact me
Send product literature
Send company information
Immediate
30 Days
60 Days
90 Days

* Required



For more information on TwiNet, contact us at 800-597-2525
